Often, you have two data sets with common key fields and different data fields, and you want to join their records, that is, for records with matching keys, you want to create output records with some fields from one data set and some fields from the other data set.
You might want a one record to one record join, a one record to many records join, a many records to one record join, or even a many records to many records join.

A JOINKEYS application helps you to perform various "join" applications on two data sets by one or more keys.
You can do an inner join, full outer join, left outer join, right outer join and unpaired combinations.
The two data sets can be of different types (fixed, variable, VSAM, and so on) and lengths, and have keys in different locations.

The records from the input data sets can be processed in a variety of ways before and after they are joined using most of the DFSORT control statements you learned about previously including SORT or COPY, INCLUDE or OMIT, INREC, OUTREC and OUTFIL.

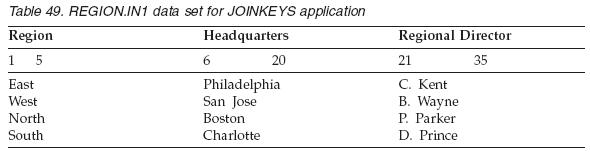

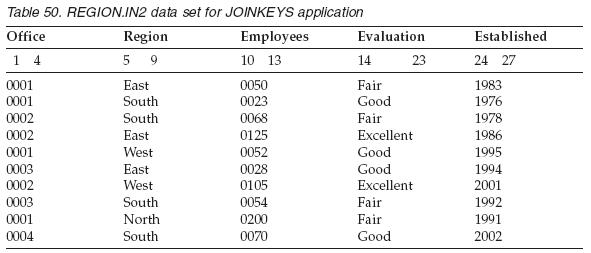

Suppose you have two input data sets, REGION.IN1 and REGION.IN2 as shown in Table 49 and Table 50. REGION.IN1 has RECFM=FB and LRECL=35 and REGION.IN2 has RECFM=FB and LRECL=27, so their LRECLs are different.

From these two input data sets, you want to create an output data set, REGION.OUT.
For each record in REGION.IN2, you want to look up the corresponding Region in REGION.IN1, and combine fields from the two records into one output record in REGION.OUT, as shown in Table 51.

Write the following DFSORT JCL and control statements to use a JOINKEYS application to create REGION.OUT from REGION.IN1 and REGION.IN2.

//JN1 EXEC PGM=SORT
//SYSOUT DD SYSOUT=*
//IN1 DD DSN=DSN=A123456.REGION.IN1,DISP=SHR
//IN2 DD DSN=DSN=A123456.REGION.IN2,DISP=SHR
//SORTOUT DD DSN=A123456.REGION.OUT,DISP=(NEW,CATLG,DELETE),UNIT=3390,
// SPACE=(CYL,(5,5))
//SYSIN DD *
  JOINKEYS F1=IN1,FIELDS=(1,5,A)   /* F1 tem o ddname IN1 e key in 1-5
  JOINKEYS F2=IN2,FIELDS=(5,5,A)   /* F2 tem o ddname IN2 e key in 5-9
  REFORMAT FIELDS=(F2:1,4,         /* Office desde F2
                   F1:1,5,21,15,   /* Region e Regional Director desde F1
                   F2:10,4,14,10,  /* Employees e Evaluation desde F2
                   F1:6,15)        /* Headquarters desde F1
  OPTION COPY
/*

Two JOINKEYS statements are required: one for the F1 data set and another for the F2 data set.
In this case, the first JOINKEYS statement identifies IN1 as the ddname for the F1 data set and indicates an ascending key (Region) in positions 1-5 of that data set.
The second JOINKEYS statement identifies IN2 as the ddname for the F2 data set and indicates an ascending key (Region) is at positions 5-9 of that data set.
Each key in the F1 data set must be of the same length and order (ascending or descending) as the corresponding key in the F2 data set, but does not have to be in the same location.
The keys are always treated as unsigned binary (INREC can be used to "normalize" the keys in each data set before the records are joined, if necessary).

The F1 data set will be sorted by the key in positions 1-5. The F2 data set will be sorted by the key in positions 5-9.
If the records in a data set are already sorted by the key, you can specify SORTED on the JOINKEYS statement to tell DFSORT to copy the records of that data set rather than sorting them.

Records with the same key in both data sets are joined and constructed as directed by the REFORMAT statement using F1: for fields from the F1 record and F2: for fields from the F2 record.

• This REFORMAT statement creates joined records from the following fields:
  • Output positions 01-04: Office from F2
  • Output positions 05-09: Region from F1
  • Output positions 10-24: Regional Director from F1
  • Output positions 25-28: Employees from F2
  • Output positions 29-38: Evaluation from F2
  • Output positions 39-53: Headquarters from F1

The resulting joined records are 53 bytes long and are copied to the SORTOUT data set (REGION.OUT).

If we wanted to sort the resulting joined records on the Headquarters and Office fields, we could replace the OPTION COPY statement with the following SORT statement:

SORT FIELDS=(39,15,CH,A,1,4,CH,A)

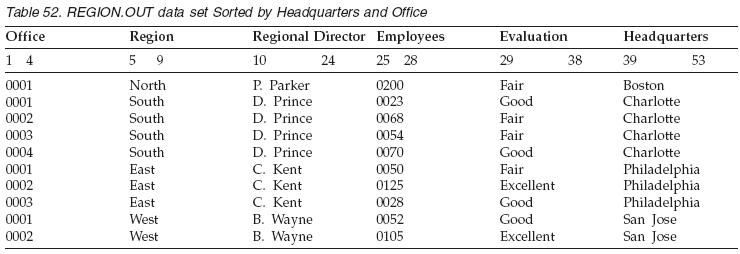

The resulting sorted output records in REGION.OUT are shown in Table 52.

You can also use a JOINKEYS application to match records from two different input data sets in various ways.

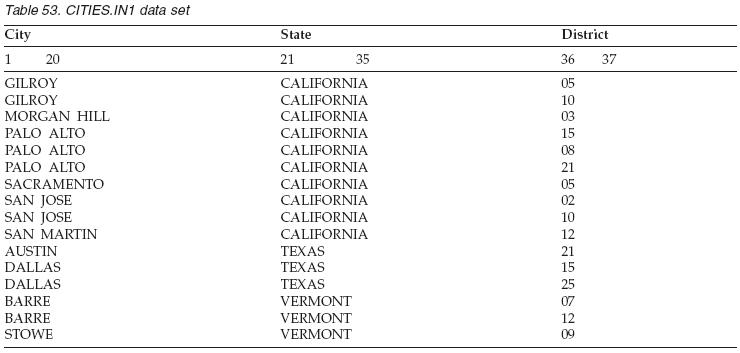

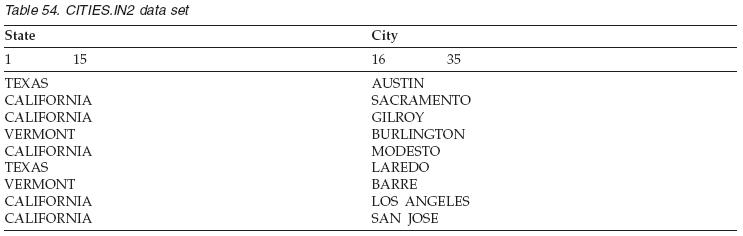

Suppose you have two input data sets, CITIES.IN1 and CITIES.IN2 as shown in Table 53 and Table 54.

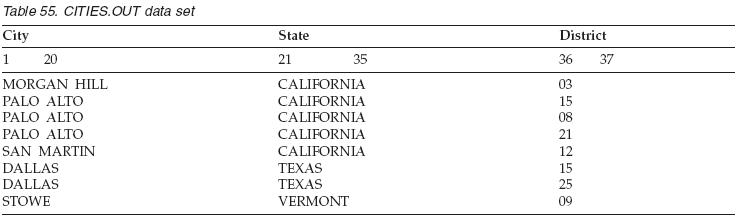

From these two data sets, you want to create a CITIES.OUT data set with the records for Cities that appear in CITIES.IN1, but not in CITIES.IN2, as shown in Table 55.

Write the following DFSORT JCL and control statements to use a JOINKEYS application to create CITIES.OUT from CITIES.IN1 and CITIES.IN2.

//JN2 EXEC PGM=SORT
//SYSOUT DD SYSOUT=*
//SORTJNF1 DD DSN=DSN=A123456.CITIES.IN1,DISP=SHR
//SORTJNF2 DD DSN=DSN=A123456.CITIES.IN2,DISP=SHR
//SORTOUT DD DSN=A123456.CITIES.OUT,DISP=OLD
//SYSIN DD *
* F1 keys are State and City - F1 is already sorted
* by those keys.
JOINKEYS FILE=F1,FIELDS=(21,15,A,1,20,A),SORTED
* F2 keys are State and City
JOINKEYS FILE=F2,FIELDS=(1,15,A,16,20,A)
* Keep the records in F1 that do not have a match in F2
* for the State and City.
JOIN UNPAIRED,F1,ONLY
OPTION COPY
/*

The first JOINKEYS statement identifies SORTJNF1 as the ddname for the F1 data set and indicates ascending keys (State and City) in positions 21-35 and 1-20 of that data set.
Since the F1 records are already in order by the State and City fields, SORTED is used to do a Copy of the F1 records rather than a Sort.

The second JOINKEYS statement identifies SORTJNF2 as the ddname for the F2 data set and indicates ascending keys (State and City) in positions 1-15 and 16-35 of that data set.
Since the F2 records are not already in order by the State and City fields, SORTED is not used and a Sort in performed for the F2 records on the indicated keys.

JOIN UNPAIRED,F1,ONLY is used to restrict the output (SORTOUT) to the records in F1 that do not have matching keys in F2.
Since we want the entire F1 record, we do not need a REFORMAT statement.

Now suppose we want to use the CITIES.IN1 and CITIES.IN2 data sets again, but this time we want to produce the following output from these two data sets:

• BOTH.OUT : CALIFORNIA and TEXAS cities that appear in both CITIES.IN1 and CITIES.IN2.
• F1ONLY.OUT: CALIFORNIA and TEXAS cities that appear in CITIES.IN1, but not in CITIES.IN2.
• F2ONLY.OUT: CALIFORNIA and TEXAS cities that appear in CITIES.IN2, but not in CITIES.IN1.

Write the following DFSORT JCL and control statements to use a JOINKEYS application to create BOTH.OUT, F1ONLY.OUT and F2ONLY.OUT from CITIES.IN1 and CITIES.IN2.

//JN3 EXEC PGM=SORT
//SYSOUT DD SYSOUT=*
//CITIES1 DD DSN=A123456.CITIES.IN1,DISP=SHR
//CITIES2 DD DSN=A123456.CITIES.IN2,DISP=SHR
//JNF1CNTL DD *
OMIT COND=(21,15,CH,EQ,C’VERMONT’)
//JNF2CNTL DD *
OMIT COND=(1,15,CH,EQ,C’VERMONT’)
//BOTH DD DSN=A123456.BOTH.OUT,DISP=OLD
//F1ONLY DD DSN=A123456.F1ONLY.OUT,DISP=OLD
//F2ONLY DD DSN=A123456.F2ONLY.OUT,DISP=OLD
//SYSIN DD *
JOINKEYS F1=CITIES1,FIELDS=(21,15,A,1,20,A),SORTED
JOINKEYS F2=CITIES2,FIELDS=(1,15,A,16,20,A)
JOIN UNPAIRED,F1,F2
REFORMAT FIELDS=(?,F1:1,37,F2:1,35)
OPTION COPY
OUTFIL FNAMES=BOTH,INCLUDE=(1,1,CH,EQ,C’B’),
BUILD=(2,37)
OUTFIL FNAMES=F1ONLY,INCLUDE=(1,1,CH,EQ,C’1’),
BUILD=(2,37)
OUTFIL FNAMES=F2ONLY,INCLUDE=(1,1,CH,EQ,C’2’),
BUILD=(54,20,39,15)
/*

The first JOINKEYS statement identifies CITIES1 as the ddname for the F1 data set and indicates ascending keys (State and City) in positions 21-35 and 1-20 of that data set.
The JNF1CNTL data set contains an OMIT statement to remove the VERMONT records from the F1 data set so they will not be joined. Since the F1 records are already in order by the State and City fields, SORTED is used to do a Copy rather than a Sort for the F1 data set.

The second JOINKEYS statement identifies CITIES2 as the ddname for the F2 data set and indicates ascending keys (State and City) in positions 1-15 and 16-35 of that data set.
The JNF2CNTL data set contains an OMIT statement to remove the VERMONT records from the F2 data set so they will not be joined.
Since the F2 records are not already in order by the State and City fields, SORTED is not used and a Sort in performed for the F2 data set.

Since we want to separate out the BOTH, F1ONLY and F2ONLY joined records, we use a JOIN statement with UNPAIRED,F1,F2 to keep the unpaired joined records as well as the paired join records.
In the REFORMAT statement, we use ? as the first field to give us an indicator of whether each key was found in both records ('B' indicator), only in F1 ('1' indicator) or only in F2 ('2' indicator).
After the indicator, we put positions 1-37 (City, State, District) from F1 and 1-35 (State, City) from F2.
After the records are joined, they will look as shown in Table 56.

Now we can use OUTFIL statements to create our three different output data sets.
We write positions 2-38 (F1 City, F1 State, F1 District) of the joined records with an indicator of 'B' to positions 1-37 of the BOTH.OUT data set.
We write positions 2-38 (F1 City, F1 State, F1 District) of the joined records with an indicator of '1' to positions 1-37 of the F1ONLY.OUT data set.
We write positions 54-73 (F2 City) and 39-53 (F2 State) of the joined records with an indicator of '2' to positions 1-35 of the F2ONLY.OUT data set.

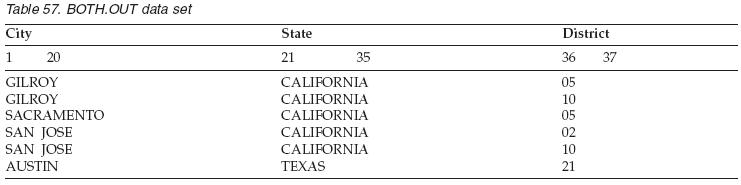

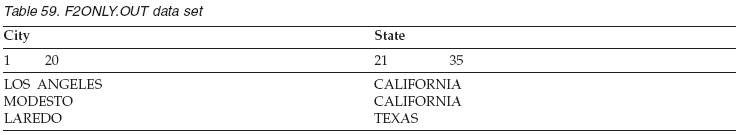

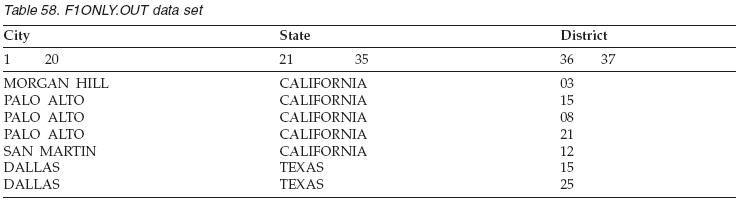

The resulting records are shown in Table 57, Table 58 and Table 59.

These are just a few of the many types of join operations you can do with JOINKEYS.
See z/OS DFSORT Application Programming Guide for complete details of using the JOINKEYS, JOIN and REFORMAT statements along with the other DFSORT statements to perform different JOINKEYS applications.
