REWRITE

Updates a record in a file.

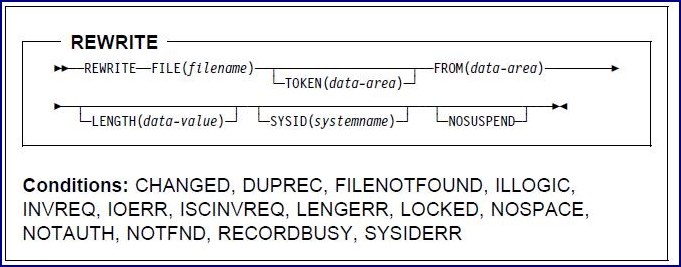

Sintaxe:

Notas:

  1. DATASET is also accepted, but FILE is preferred.
  2. LENGTH is required with SYSID, and with FROM when rewriting variable-length records.
  3. DSIDERR is equivalent to FILENOTFOUND.

Descrição:

REWRITE updates a record in a file that is on a local or a remote system.
You must always precede this command with a READ UPDATE to read the record that is to be updated.

The following is an example of a REWRITE command:

     EXEC CICS REWRITE
          FROM(RECORD)
          FILE('MASTER')
     END-EXEC

Opções:

    FILE(name)
  • Specifies the name of the CICS file that is to be accessed.
  • The name must be alphanumeric, up to eight characters long, and the file must be currently UPDATABLE (see INQUIRE FILE).
  • If a non-local SYSID is specified, the underlying file is assumed to reside on a remote system, irrespective of whether the name exists in the local File Definitions (FD).
  • Otherwise, the FD entry is used to determine whether the underlying file is on a local or a remote system.
    FROM(data-area)
  • Specifies the record that is to be written to the file.
    LENGTH(data-value)
  • Specifies, as a 16-bit binary value, the length of the record that is to be written.
  • If SYSID is specified, LENGTH must be coded.
  • You must also specify this option for a file that is defined as containing variable-length records.
  • It need not be specified if the file contains fixed-length records, although its inclusion is recommended because this causes a check to be made that the length of the record that is being written is equal to that which is defined for the underlying file.
  • If the lengths are not equal, the LENGERR condition occurs. See LENGTH for more information about using this option.
    SYSID(name)
  • Specifies on which CICS region the REWRITE is to run.
  • The SYSID name has one through four characters.
  • For a full description of the SYSID option, refer to SYSID.
  • If the SYSID option is not specified, it defaults to the value that is in the RemoteSysId attribute of the FD entry for the file that is requested in the FILE option.
  • If the SYSID option requests a remote SYSID, you must also specify LENGTH.

Condições:

    DISABLED
  • Occurs if the specified file is disabled.
  • A file might be disabled because:
    • It was initially defined as disabled and has not since been enabled.
    • It has been disabled by an EXEC CICS SET FILE command or by the CEMT transaction.
  • Ação pré-definida: Terminates the task abnormally.
    DUPREC
  • Occurs if the underlying file has an active alternative index that accepts only unique keys, and the record that is to be updated for this index has a key that duplicates an existing value.
  • Ação pré-definida: Terminates the task abnormally.
    FILENOTFOUND
  • Occurs if the name that is specified in the FILE option cannot be found in the FD.
  • Ação pré-definida: Terminates the task abnormally.
    ILLOGIC
  • Occurs if an error occurs that does not fall within one of the other CICS response categories.
  • (Further information is available in the EIBRCODE field; see Appendix A, EXEC interface block (EIB) fields for details.)
  • Ação pré-definida: Terminates the task abnormally.
    INVREQ
  • Occurs for the following conditions, depending on the options that are specified on the REWRITE command:
    • A REWRITE command is issued for a file that has not had a previous READ UPDATE successfully issued.
  • Ação pré-definida: Terminates the task abnormally.
    IOERR
  • Occurs if an I/O error occurs during the file control operation.
  • An I/O error is any unusual event that is not covered by a CICS condition.
  • (Further information is available in the EIBRCODE field; see Appendix A, EXEC interface block (EIB) fields for details.)
  • See Processing the IOERR condition for information about handling the IOERR condition.
  • Ação pré-definida: Terminates the task abnormally.
    ISCINVREQ
  • Occurs if the remote system indicates a failure that does not correspond to a known condition.
  • Ação pré-definida: Terminates the task abnormally.
    LENGERR
  • Occurs for the following conditions:
    • The specified length exceeds the maximum record size; the data was truncated when written.
    • The specified length is smaller than the record size for a file thht has fixed-length records, the data is written to the start of the record, and the remainder of the record is padded with null bytes.
  • Ação pré-definida: Terminates the task abnormally.
    NOSPACE
  • Occurs if the direct access device has no available space for the addition of the updated record to the underlying file.
  • Ação pré-definida: Terminates the task abnormally.
    NOTAUTH
  • Occurs for the following conditions:
    • When a resource security check is unsuccessful on FILE(name)
    • When SYSID is specified by a transaction that is defined with the RSLCheck attribute set to either internal or external
  • Ação pré-definida: Terminates the task abnormally.
    NOTOPEN
  • Occurs for the following conditions:
    • The requested file is CLOSED and UNENABLED. The CLOSED, UNENABLED state is reached after a CLOSE request has been received against an OPEN ENABLED file, and the file is no longer in use.
    • The requested file is OPEN and in use by other transactions, but a CLOSE request against the file has been received.
      Current activity is allowed to complete, but no new activity is allowed to start.
  • This condition does not occur if the request is made to either a CLOSED, ENABLED file or a CLOSED, DISABLED file.
  • In the first case, the file is opened as part of executing the request. In the second case, the DISABLED condition occurs.
  • Ação pré-definida: Terminates the task abnormally.
    SYSIDERR
  • Occurs if a problem with the communications configuration prevents the REWRITE from proceeding. For example:
    • The connection that is named in the SYSID option is not the name of a Communications Definition (CD) entry.
    • The SYSID option references a CD entry that is incorrectly configured.
    • The SYSID option references a CD entry that is marked as out of service.
  • It can also occur if the connection to the remote system is closed.
  • This could be because the remote system is not available.
  • Ação pré-definida: Terminates the task abnormally.

Informações relacionadas:
